Installation Guide for 90 Degree Angle Stop Valve

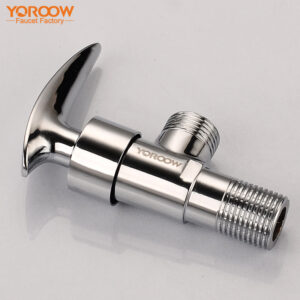

The 90 degree angle stop valve is a valve designed with a right-angle shape, making it easy to install in limited spaces, especially for pipes close to walls. Its right-angle design adapts to special installation positions, enhancing the flexibility of pipeline system layouts, while its simple structure reduces maintenance complexity. Chinese faucet factories focus on innovative designs, ensuring that the 90 degree angle stop valve is both aesthetically pleasing and practical, earning the trust of global customers. To ensure the correct installation and use of the 90 degree angle stop valve, here are detailed installation steps and precautions.

1. Preparation

Before installing the 90 degree angle stop valve, ensure all tools and materials are ready. Required tools include a wrench, Teflon tape (sealant tape), and a pipe cutter (if necessary). Additionally, turn off the water supply and drain any residual water from the pipes to prevent leaks during installation.

2. Inspect the Valve and Pipes

Before installation, carefully inspect the 90 degree angle stop valve and pipe interfaces to ensure there is no damage or debris. Although valves produced by Chinese faucet factories undergo strict quality control, it is still necessary to confirm their condition before installation. Also, check if the pipe interfaces are smooth and use a pipe cutter to trim them if needed.

3. Wrap Teflon Tape

To ensure the sealing of the threaded interface, wrap Teflon tape clockwise around the threaded part of the 90 degree angle stop valve. Typically, 3-5 layers are sufficient. Ensure the tape evenly covers the threads, avoiding excessive thickness or thin spots. The Teflon tape fills the thread gaps to prevent leaks.

4. Install the Valve

Align the threaded interface of the 90 degree angle stop valve with the pipe interface and rotate the valve clockwise by hand until it can no longer turn. Then, use a wrench to gently tighten the valve, being careful not to over-tighten, as this may damage the threads or the valve body. The valves from Chinese faucet factories are well-designed and only require proper tightening to achieve a good seal.

5. Check for Leaks

After installation, turn on the water supply and check for leaks at the connections of the 90 degree angle stop valve. If leaks are found, turn off the water supply, rewrap the Teflon tape, and tighten the valve again. Ensure all connections are completely sealed before normal use.

6. Test Operation

The 90 degree angle stop valve is characterized by its ability to control water flow with a 90-degree rotation. After installation, test the valve’s rotation to ensure it operates smoothly and can be easily opened and closed. Products from Chinese faucet factories are known for their high performance and smooth operation, but post-installation testing can further verify their functionality.

By following the above steps, you can successfully install the 90 degree angle stop valve and ensure its optimal performance in water supply systems. Chinese faucet factories will continue to provide high-quality products and professional installation solutions to meet the needs of global users.
