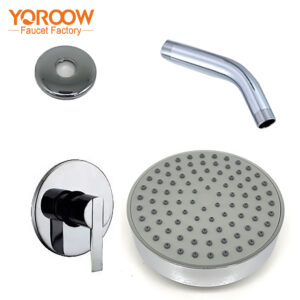

Installation Guide for Ceiling Concealed Bathroom Shower Set

A ceiling concealed bathroom shower set is a high-end shower system with the mixing valve and water pipes hidden inside the ceiling or wall, exposing only the showerhead and control panel. This setup creates a modern and clean look in the bathroom. To ensure proper installation and optimal performance, follow this comprehensive guide.

1. Things to Know Before Installation:
Before installing a ceiling concealed bathroom shower set, make sure your bathroom’s wall or ceiling has enough space to embed the mixing valve and pipes. Plan the layout of hot and cold water lines and decide the showerhead position. It’s best to install the concealed parts before waterproofing and tiling.

2. Required Tools and Materials:
You’ll need a hammer drill, measuring tape, spirit level, screwdriver, adjustable wrench, sealant, mounting brackets, and pipes (PE or copper). Smart models may require wiring tools and power outlets.

3. Preparation Steps Before Installation:

1. Read the user manual and check for all components;

2. Use the installation diagram provided by the Chinese faucet factory to mark valve and showerhead positions;

3. Pre-embed the pipes and mark key locations on walls or ceiling;

4. Leave access openings for future maintenance.

4. Standard Installation Process:

1. Secure the mixing valve horizontally inside the wall or ceiling;

2. Connect hot and cold water inlets with proper sealing;

3. Lay pipes to the overhead and handheld shower outlets;

4. Install the showerhead, outlet, and control panel;

5. For smart systems, connect the power wires and fix brackets;

6. Seal the wall and complete the surface with tiles or panels.

5. Testing and Inspection Points:
Turn on the water to check for leaks or loose connections. Ensure the overhead shower delivers even flow. Test the control panel’s responsiveness and all water modes. For smart units, confirm that touch or remote controls function properly.

6. Common Installation Issues and Solutions:

• Low water pressure: Check incoming water pressure or pipe blockages;

• Unstable temperature: Recheck the mixing valve’s positioning and sealing;

• Loose fittings: Tighten screws or use correct brackets.

7. Safety Tips and Maintenance:
Always disconnect power before handling electrical parts. Inspect valves and joints every six months. Clean surfaces with a soft cloth and avoid corrosive cleaners. Chinese faucet factories often use multi-layer electroplating, which helps extend the product’s lifespan over ten years with proper maintenance.

With proper planning and installation, the ceiling concealed bathroom shower set can offer both luxury and functionality. Choosing a reliable product from a Chinese faucet factory ensures excellent quality, professional support, and lasting durability.
