1. Product Introduction

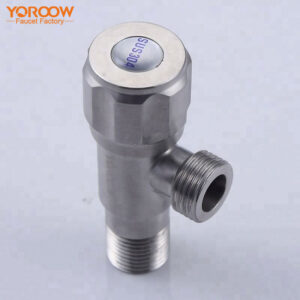

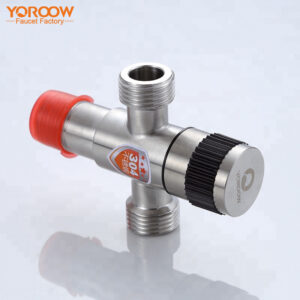

The stainless steel angle valve 3/8 × 1/2 PEX produced by our Chinese faucet factory is a high-quality valve specifically designed for PEX pipe connections. Made of 304 stainless steel, it offers excellent corrosion and oxidation resistance, ensuring long-term stability even in humid environments.
With a 3/8-inch inlet for connecting to the water supply and a 1/2-inch outlet for PEX pipes, the stainless steel angle valve 3/8 × 1/2 PEX provides a secure seal and reliable water flow control. It is ideal for both residential and commercial hot and cold water systems, often used in kitchens, bathrooms, and for devices such as faucets, toilets, and water heaters.
2. Installation Steps
- Prepare tools and materials
- Stainless steel angle valve 3/8 × 1/2 PEX
- Wrench
- Thread seal tape
- PEX pipe
- Shut off the main water supply Before starting the installation, be sure to close the main water valve to prevent any water leakage.
- Connect to the water supply (3/8” inlet) Align the 3/8-inch inlet of the stainless steel angle valve 3/8 × 1/2 PEX with the water supply pipe. Wrap thread seal tape around the threads and use a wrench to tighten the connection securely.
- Connect to the PEX pipe (1/2” outlet) Insert the 1/2-inch outlet into the PEX pipe, ensuring a proper depth. Tighten the compression nut to ensure a firm and leak-free connection.
- Test the water flow Turn on the main water supply and slowly rotate the angle valve handle. Check for smooth water flow and inspect all connections for leaks. If everything works correctly, the valve is ready for use.
3. Maintenance and Care
- Regularly check connections: Inspect the stainless steel angle valve 3/8 × 1/2 PEX every 3 to 6 months for leaks or loose fittings. Replace any worn-out sealing materials as needed.
- Keep it clean: Wipe the surface with a damp cloth if there is any buildup or dirt. Avoid using acidic or chlorine-based cleaners.
- Prevent freezing: During cold weather, ensure the pipes and angle valve are insulated to prevent freezing and potential damage.
4. Product Advantages
- High-quality material: Made from 304 stainless steel, ensuring superior corrosion and oxidation resistance.
- Precise water flow control: Allows for accurate adjustment of water flow for stable hot and cold water systems.
- Wide compatibility: The 3/8 × 1/2 PEX standard fits most international PEX pipe systems.
- Easy installation: Simple to install with basic tools, suitable for DIY projects.
