Installation Guide for Wall Mounted Concealed Shower Set for Bathroom

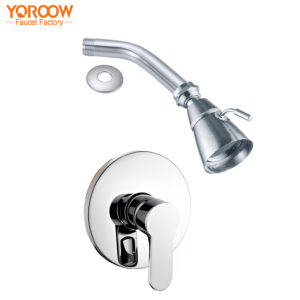

The wall mounted concealed shower set for bathroom is a modern and elegant shower solution that hides piping and valves inside the wall, leaving only the showerhead, control panel, and outlets visible. This guide covers everything from preparation to maintenance to ensure proper installation and use.

1. Pre-Installation Notes
Before installation, read the product manual carefully. Make sure all components of the wall mounted concealed shower set for bathroom are included. Check whether your wall structure is suitable for embedded installation, and confirm the correct position of hot and cold water pipes.

2. Required Installation Tools

• Electric drill

• Spirit level

• Hex wrench

• Adjustable wrench

• Pipe wrench

• Plumbing tape

• Silicone sealant

3. Pre-Installation Preparation Steps

1. Shut off the main water supply for safety;

2. Measure and mark the installation height and outlet locations;

3. Pre-lay the inlet pipes, sealing connections with plumbing tape;

4. Leave enough access space for future maintenance.

4. Standard Installation Process

1. Mount and fix the mixing valve inside the wall, ensuring it is level;

2. Connect hot and cold water inlets and outlets to the overhead and handheld shower;

3. Close the wall and apply tiles, leaving holes for the valve and outlets;

4. Install the panel, handheld holder, overhead shower, and hose;

5. Use a spirit level to confirm all fittings are aligned and secure.

5. Testing and Inspection Points

• Turn on the water to check the switching between hot and cold;

• Check for any leakage;

• Test the thermostatic function for stability;

• Ensure proper water flow from both overhead and handheld showers.

6. Common Installation Issues & Solutions

• Water temperature fluctuates: Clean or replace the thermostatic cartridge;

• Low water pressure: Check for blockages in the inlet pipes;

• Leakage: Reseal and tighten the pipe connections;

• Uneven panel: Adjust the mixing valve’s installation position.

7. Safety Tips & Maintenance Advice

• Clean the showerhead regularly to prevent scale buildup;

• Inspect the valve cartridge every 6 months for smooth operation;

• Hire professional installers to avoid improper installation;

• Avoid hard impacts during use to protect the system.

Wall mounted concealed shower set for bathroom products from Chinese faucet factories are made with high-quality brass and stainless steel, offering superior durability and corrosion resistance. With proper installation and care, these systems are ideal for homes, luxury hotels, and SPA centers, delivering a premium shower experience.
