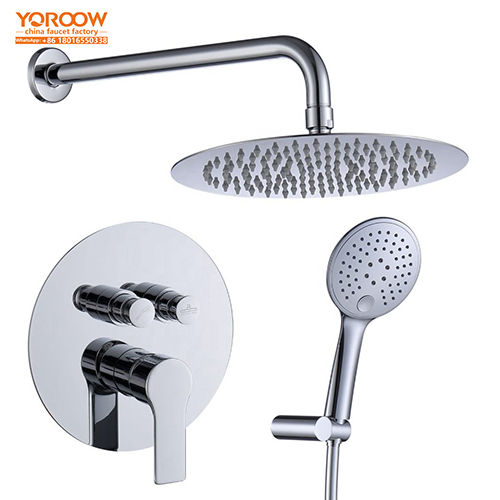

The shower set system bathroom concealed rain bath is a highly integrated modern shower solution. By embedding components such as pipes and mixing valves inside the walls, it effectively optimizes the bathroom layout and significantly enhances the overall aesthetic. This system generally includes a large – sized overhead rain showerhead, a handheld shower, a multifunctional water outlet control panel, hot and cold water mixing valves, and thermostatic valves. Some high – end models are also equipped with intelligent digital displays, touch controls, or remote control functions, enabling precise adjustment of water temperature and flow. Suitable for high – end residential properties, hotels, and luxurious bathroom designs, this shower system provides users with an immersive bathing experience. The shower set system bathroom concealed rain bath produced by Chinese faucet factories is made of corrosion – resistant materials such as stainless steel, brass, and PPR, ensuring long – term stable operation. Meanwhile, it can be customized with a variety of high – end finishes, including chrome, matte black, and brushed gold, to meet different style preferences. The following is a detailed installation guide.
(I) Precautions Before Product Installation
1. Wall Condition Confirmation
Before installation, the condition of the wall needs to be thoroughly evaluated to confirm that its load – bearing capacity can support the shower system. For solid walls, space for pipeline embedding should be planned in advance; for hollow walls, reinforcement measures or the addition of false walls need to be considered to ensure a stable installation and facilitate future maintenance. Also, pay attention to the wall thickness to ensure there is enough space to accommodate components such as pipes and valves.
2. Product Adaptability Check
Carefully check the compatibility of the purchased shower set system bathroom concealed rain bath with the home water supply system, including parameters such as water pressure and temperature range. Most products manufactured by Chinese faucet factories support the standard G1/2 interface and can adapt to different water pressure environments. However, the applicable conditions of specific models still need to be confirmed to prevent abnormal water flow caused by water pressure mismatch. If a special water supply system, such as a solar water heating system, is used at home, communicate with the manufacturer in advance to confirm product compatibility.
3. Design Scheme Determination
Communicate fully with Chinese faucet factories to determine the customized design scheme of the shower system according to the bathroom decoration style and personal preferences. Everything from the style of the control panel to the finish color of the showerhead can be customized as required. For example, the matte black finish is suitable for a simple and modern style, while the chrome finish matches a retro European style better.
(II) Required Installation Tools
- Measuring Tools: Tape measure, spirit level, used for precise measurement and positioning of the installation location to ensure the installation is horizontal and vertical.
- Cutting Tools: Angle grinder, pipe cutter, used for cutting walls and pipes to meet the installation size requirements.
- Fastening Tools: Electric drill, wrench, screwdriver, used for fixing components such as pipes, valves, and panels.
- Sealing Tools: Sealant gun, PTFE tape, to ensure good sealing at pipe connections and wall joints and prevent water leakage.
- Other Tools: Hot melt machine (suitable for PPR pipe connection), pipe pliers, hammer, and other auxiliary tools.
(III) Preparation Steps Before Installation
1. Shut Off Water Supply and Drain
Locate the main water valve at home and turn it off, then open the faucet to drain the remaining water in the pipes to avoid water leakage during the installation process and ensure the safety and smooth progress of the construction.
2. Wall Pretreatment
Mark the installation positions of pipes, valves, and control panels on the wall according to the design scheme. Use cutting tools to cut appropriate grooves in the wall. The depth and width of the grooves should meet the installation requirements of pipes and valves. If a false wall needs to be installed, build the frame in advance.
3. Inventory of Materials and Accessories
Check all components of the shower set system bathroom concealed rain bath carefully against the product list, including showerheads, control panels, valves, pipes, connectors, etc., to ensure there are no shortages or damages. At the same time, check the specifications and quality of the accessories, and contact the manufacturer for replacement in case of any problems.
(IV) Standard Installation Process
1. Installation of Embedded Box and Pipes
Place the embedded box accurately into the wall groove, calibrate the levelness with a spirit level, ensure that the embedded box is flush with the wall surface, and then fix it with screws or cement. Then, connect the hot and cold water pipes to the corresponding interfaces of the embedded box according to the hot and cold water markings. Use hot melt or pipe fitting connection methods to ensure a firm connection. After the connection is completed, conduct a preliminary water pressure test to check for pipe leaks.
2. Installation of Valves and Control Panels
Install the hot and cold water mixing valve and the thermostatic valve into the embedded box, and debug them according to the instruction manual to ensure that the valves can regulate the water temperature normally. Then, install the multifunctional water outlet control panel on the wall surface, fix it with screws, and connect the internal lines (for intelligent control panels) or mechanical connection components. Pay attention to keeping the panel clean and beautiful during the installation process.
3. Showerhead Installation
First, install the overhead rain showerhead. Fix the shower arm on the ceiling or wall according to the designed height and position, ensuring a firm and horizontal installation. Then connect the showerhead to the shower arm and tighten the interface to prevent water leakage. Finally, install the handheld shower, connect the hose to the corresponding interface of the embedded box, and fix the handheld shower at a suitable position for easy use.
4. Wall Restoration and Decoration
After the installation is completed, restore the wall. Use materials such as gypsum board, tiles, or other decorative materials to cover the embedded box and pipe grooves, restoring the integrity and beauty of the wall surface. Seal the joints with sealant to prevent water vapor from penetrating the wall.
(V) Key Points of Use Testing and Inspection
1. Function Testing
Turn on the water supply and test each function in sequence, including hot and cold water adjustment, switching of different water outlet modes (such as rain mode, massage mode, etc.), and the operation response of the intelligent control panel. Check whether the water temperature can be stabilized at the set temperature and whether the water flow is uniform and strong.
2. Leakage Detection
Carefully check all pipe connections, valve interfaces, and wall joints for water leakage. This can be done by observing for water stains or droplets, or by wiping with a tissue. If water leakage is found, turn off the water supply in time and re – tighten or replace the seals.
3. Water Pressure and Water Temperature Stability Testing
Test the water pressure and water temperature stability of the shower system during different peak water usage periods. Products manufactured by Chinese faucet factories usually have good pressure – stabilizing performance, but actual testing is still required to ensure that the user experience is not affected.
(VI) Common Installation Problems and Solutions
1. Unstable Water Temperature
Cause: Large fluctuations in water pressure, malfunction of the thermostatic valve, or incorrect connection of hot and cold water pipes.
Solution: Install a pressure – stabilizing device to regulate the water pressure; check the thermostatic valve and replace it in time if it is damaged; re – check the connection of hot and cold water pipes to ensure it is correct.
2. Poor Water Flow
Cause: Blocked pipes, blocked nozzles of the showerhead, or the valve not fully opened.
Solution: Use a dredging tool to clean the pipes; soak the showerhead in white vinegar to clean the nozzles; check the valve to ensure it is fully open.
3. Wall Seepage
Cause: Poor wall sealing, water leakage at pipe joints, or unstable installation of the embedded box.
Solution: Reapply sealant to strengthen wall sealing; check pipe joints and tighten or replace seals; reinforce the embedded box to ensure a stable installation.
(VII) Safety Tips and Maintenance Suggestions
1. Safety Tips
- During the installation process (for intelligent shower systems), be sure to turn off the power supply to avoid the risk of electric shock.
- When using power tools, strictly follow the operating procedures and wear protective equipment such as goggles and gloves.
- After the installation is completed, regularly check the electrical and water circuits to ensure there are no safety hazards.
2. Maintenance Suggestions
- Daily Cleaning: Regularly wipe the surface of the shower system with a soft cloth to remove water stains and dirt, and avoid using corrosive cleaners. For special finishes such as matte black and brushed gold, use special cleaning agents for maintenance.
- Regular Inspection: Check the working status of pipe connections, valves, and control panels at regular intervals, and discover and deal with potential problems in a timely manner. If loose screws are found, tighten them in time; if the valve leaks, replace the seals in time.
- Scale Removal Treatment: In areas with hard water quality, regularly perform scale removal treatment on the showerhead and pipes. Special scale removers or white vinegar soaking can be used to prevent scale blockage from affecting the use effect.
With the above comprehensive installation guide and maintenance suggestions, you can successfully install and use the high – quality shower set system bathroom concealed rain bath produced by Chinese faucet factories for a long time, enjoying a comfortable and convenient bathing experience.
